Variance Maximization

Start Here: Your First Evolution

This is the simplest evolvable hardware experiment — a great first project for newcomers. You'll evolve a circuit that maximizes output signal variance. Time estimate: ~1–2 hours from powered hardware to first evolved result. Prerequisites: Completed hardware setup and software setup.

This early benchmark demonstrates that intrinsic analog evolution on the Lattice iCEstick HX1K can reliably amplify signal variance using only bitstream-level mutations. This is the simplest experiment and can serve as a "Hello World" for your introduction to Evolvable Hardware. By maximizing the variance of the output signal, we encourage the evolution of complex, dynamic behavior that can be difficult to design manually. This experiment serves as a starting point for understanding the capabilities of the Bitstream Evolution toolkit and provides a foundation for more complex experiments that involve specific target behaviors, robustness analysis, and transferability studies.

Evolution of signal variance
Evolution of signal variance

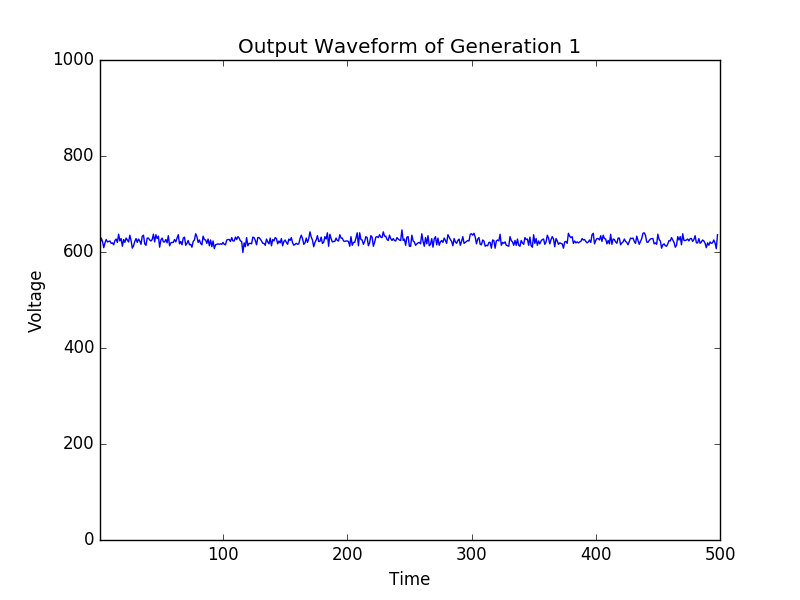

Early runs started with near-zero activity before evolution discovered rich analog dynamics. The animation captures a representative population member as its output swings grow generation-by-generation.

Experiment Snapshot

Runtime Population Generations Mutation Rate Crossover Rate
4–5 hours 50 100 0.005 0.5

Fitness Function

Variance maximization equation
Variance maximization equation

The fitness function averages the absolute difference between sequential ADC samples captured by the MCU. Maximizing this average differential rewards circuits that swing further between readings, naturally increasing output amplitude/variance over successive generations.

Results

Variance maximization fitness trace
Variance maximization fitness trace

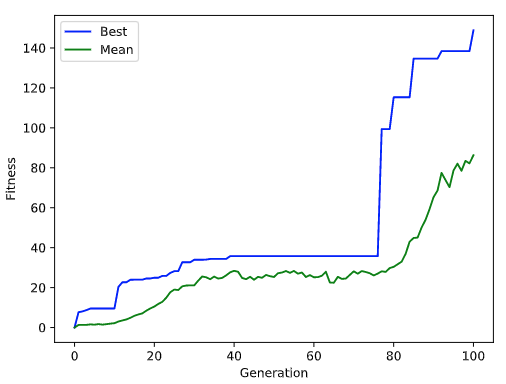

Because the search happens on real hardware, stochastic device noise influences each evolutionary trajectory. Even so, typical runs resemble the curve above: an initially flat fitness landscape gives way to rapid climbs once evolution discovers richer analog dynamics. Extending the generation budget beyond the default 100 iterations usually uncovers even higher-variance solutions.
