Pulse Oscillation

This experiment evolves FPGA-resident circuits that emit a stable pulse at a target frequency. It builds on the same intrinsic workflow as variance maximization but pushes evolution to coordinate timing behavior instead of raw amplitude.

Experiment Snapshot

Runtime Population Generations Mutation Rate Crossover Rate
10–12 hours 50 100 0.005 0.5

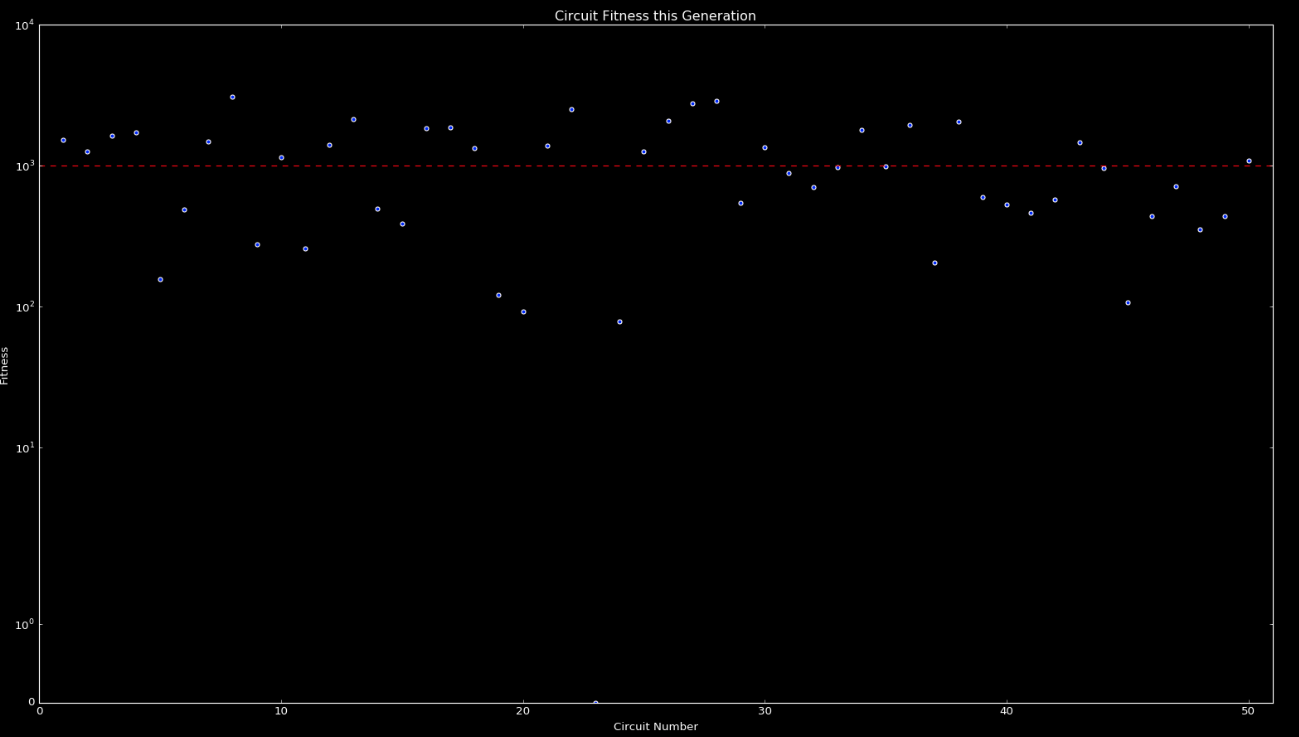

Pulses counted per generation
Pulses counted by circuits in a specific generation

Pulse counts slowly accumulate before a breakthrough circuit locks onto the desired tone, at which point the population begins exploring variants of that pulse rhythm.

Fitness Function

Pulse oscillation fitness
Pulse oscillation fitness

Fitness is computed as the inverse of the absolute difference between the target frequency $f$ and the measured frequency $n$. When $f = n$ the function short-circuits the divide-by-zero case and awards a fitness of 1000, giving evolution a crisp gradient toward the desired pulse rate.

Results

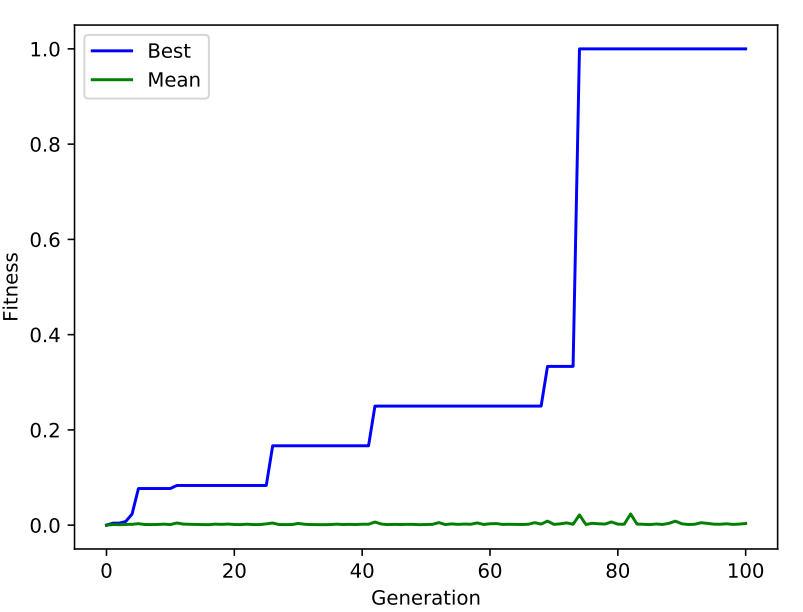

Pulse oscillation fitness (linear)
Pulse oscillation fitness (linear)

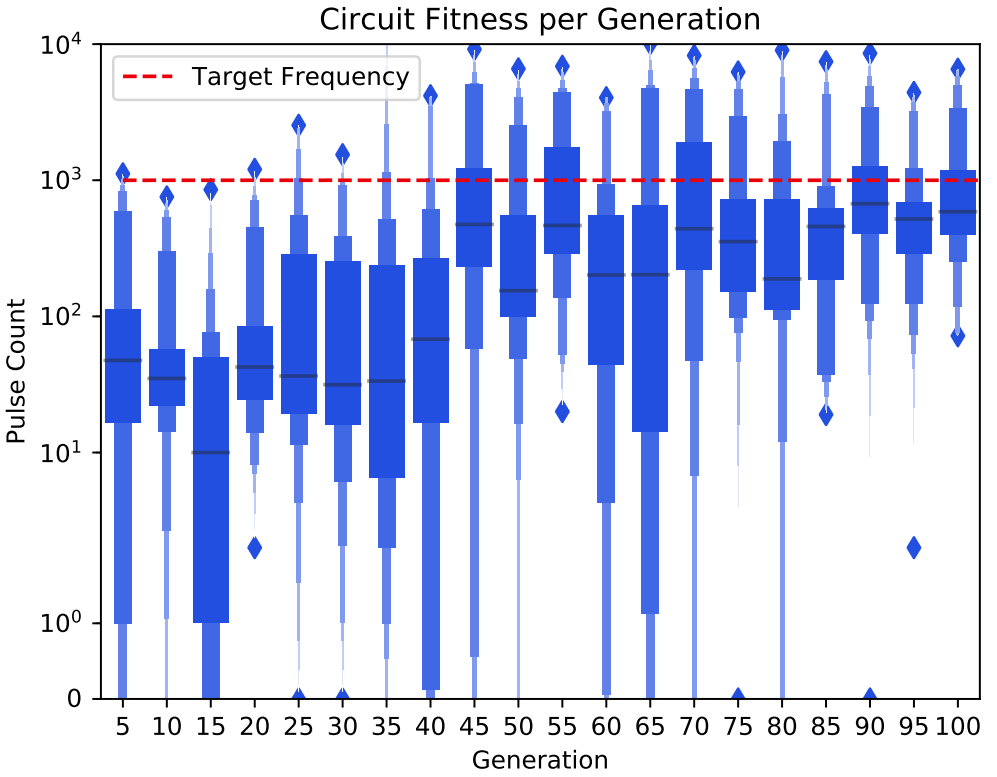

Pulse oscillation fitness (log)
Pulse oscillation fitness (log)

Search trajectories are sensitive to physical noise, so no two runs look identical. In the featured run, fitness climbed steadily for roughly 70 generations before spiking to the maximum attainable score, where it remained for the rest of the experiment. The log-scale view reveals the broader population steadily chasing the leading individual despite appearing flat in linear space.
